Inline/Return Line/Suction Filters

At Industrial Parts and Components, our Hydraulic Circuit Filters are engineered to provide comprehensive protection across every stage of the fluid power cycle. Whether installed at the inlet, the pressure line, or the exhaust, these filters are the primary defense against component wear and system failure. By strategically placing Suction, Inline (Pressure), and Return Line filters, we ensure that your hydraulic oil remains within ISO cleanliness standards, extending the life of pumps, valves, and actuators.

The Three Pillars of Circuit Protection

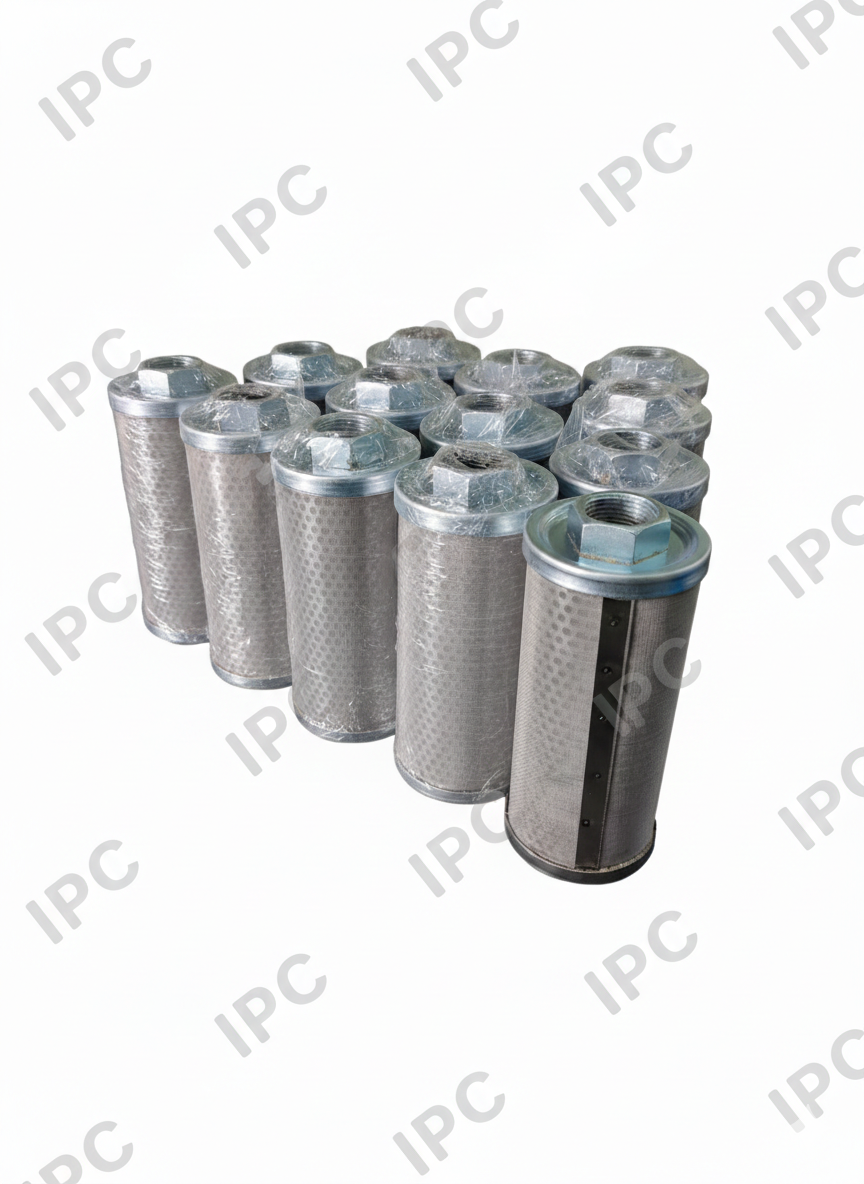

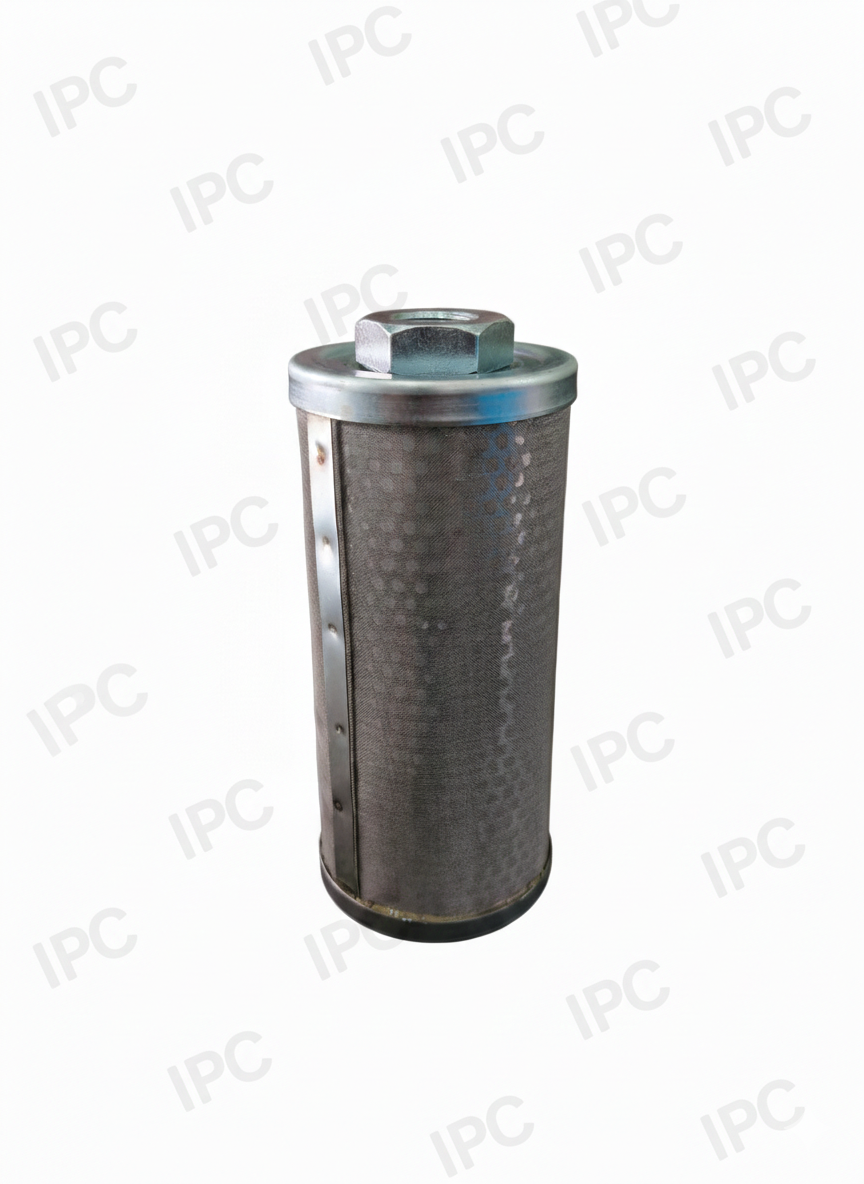

• Suction Strainers (Inlet Protection):Mounted directly to the pump intake, these filters prevent "catastrophic" debris (like nuts, bolts, or large scale) from entering the pump. They are designed with high-flow mesh to prevent cavitation while ensuring the pump receives a clean supply of oil.

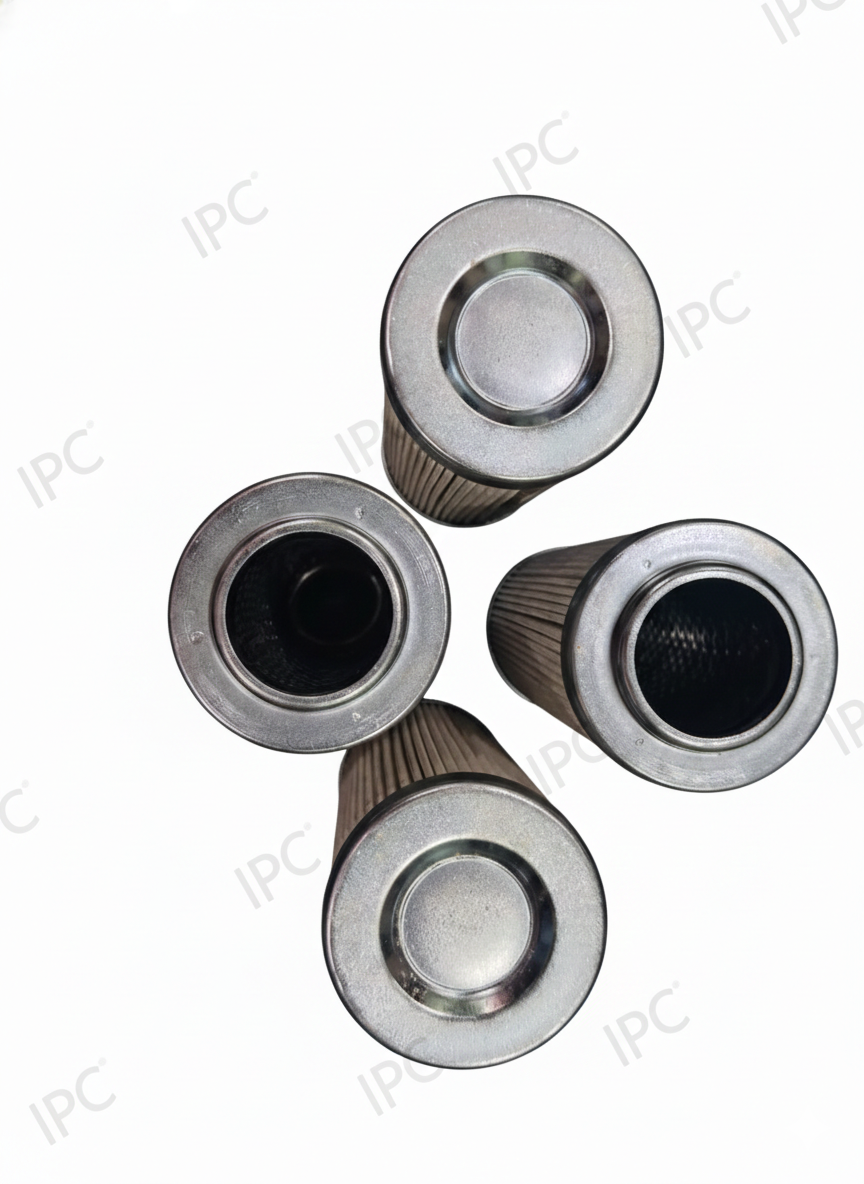

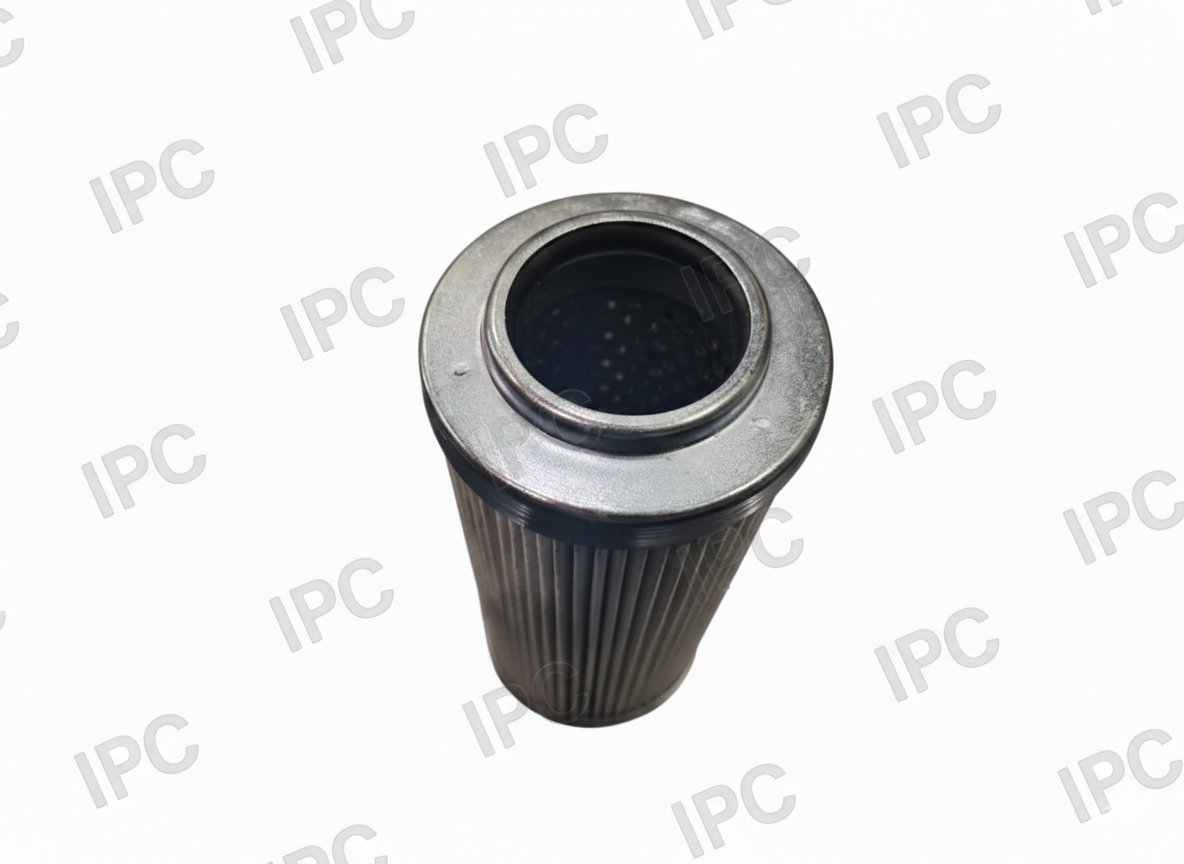

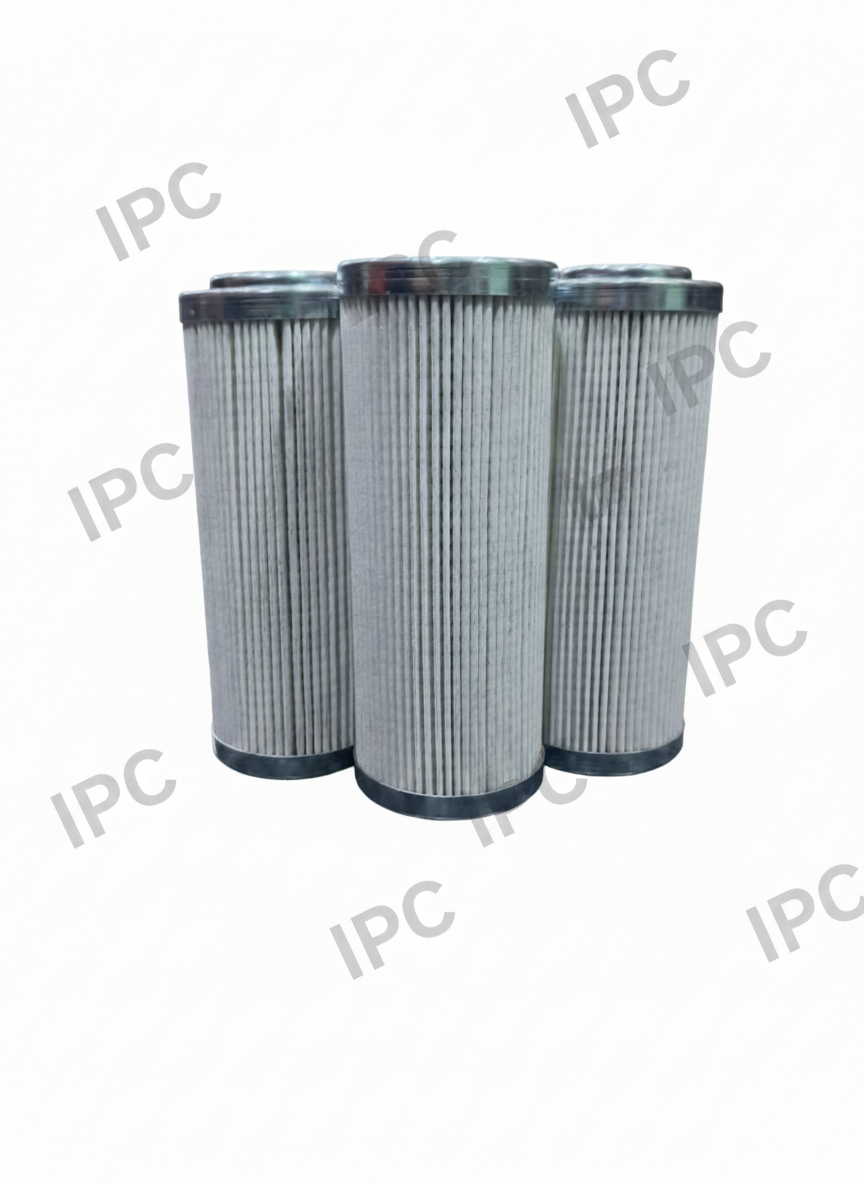

• Inline Pressure Filters (Component Protection):Positioned downstream of the pump, these high-pressure housings are built to withstand full system loads. They capture the finest silt and wear particles before they can reach sensitive servo-valves or cylinders, preventing "stiction" and precision loss.
• Return Line Filters (System Cleanliness):As the final stage, these filters clean the oil before it returns to the reservoir. They capture wear debris generated by the components themselves, ensuring the tank remains a source of clean fluid rather than a settling ground for contaminants.
