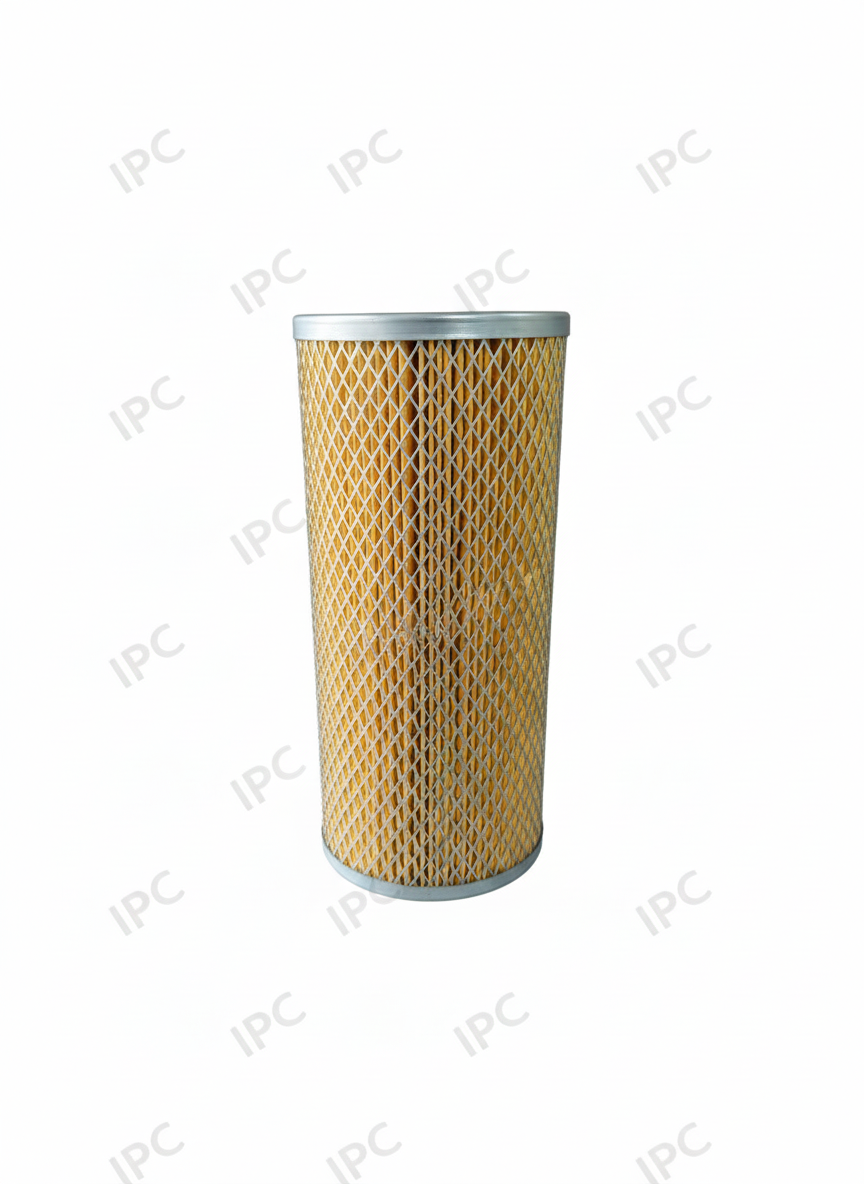

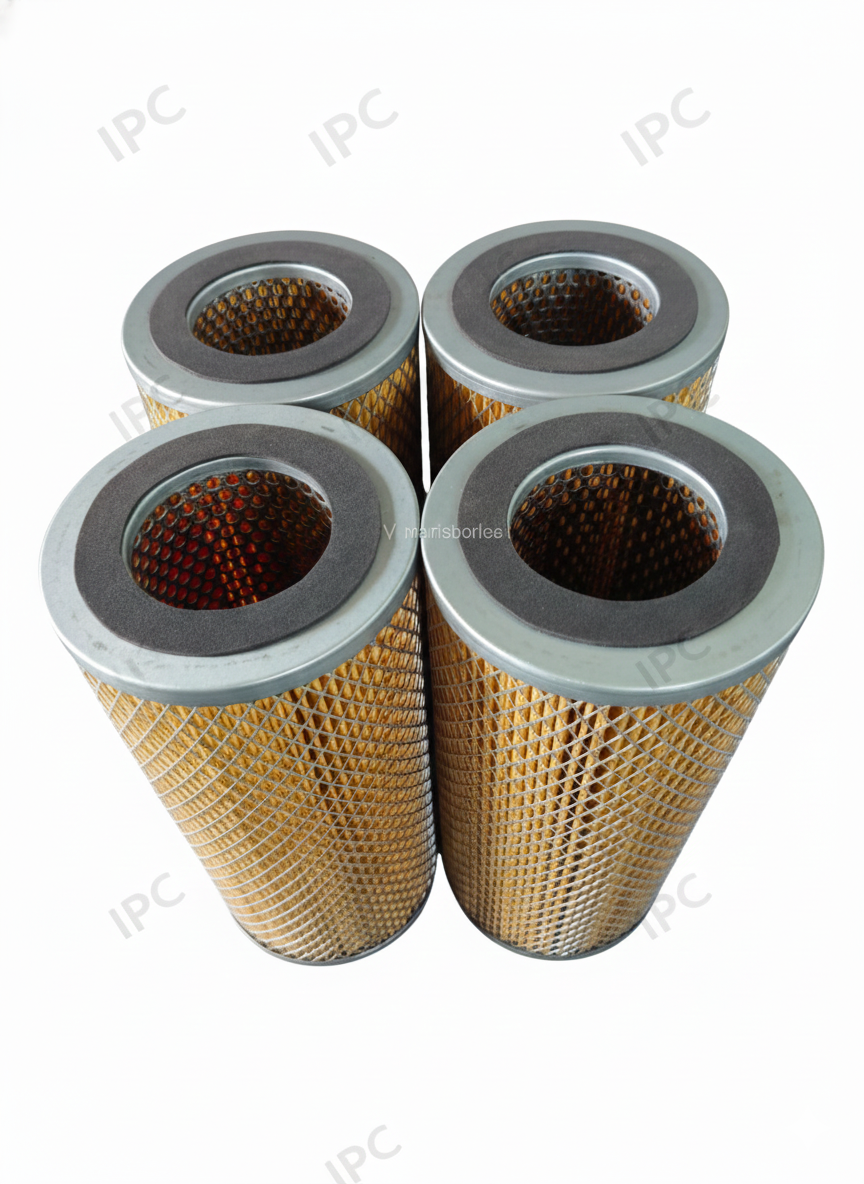

At Industrial Parts and Components, our Paper Pleated Filter Cartridgesare engineered for high-performance air intake and industrial filtration. Designed with a robust outer reinforcement and specialized media, these cartridges are the ideal solution for demanding environments where structural durability and fine particle retention are critical. Whether used in heavy machinery, compressors, or specialized power systems, our filters provide maximum protection and extended service life for your equipment..

Key Features

• High-Efficiency Cellulose Media: Features premium paper-based pleated media that provides exceptional depth filtration, capturing fine contaminants while maintaining low resistance to airflow.
• Industrial-Grade Sealing Equipped with a heavy-duty compression gasket and metal end caps, ensuring a 100% airtight seal to prevent any unfiltered bypass.
• Durability-Focused Design: The thermal-bonded metal end caps allow the filter to operate reliably in high-vibration and high-temperature environments compared to standard plastic alternatives.

Specification Table

Parameter	Details
Filter Type	3-Lug / Flange Top Dust Collector Cartridge
Media	Spun-bonded Polyester / PTFE Coated / Antistatic
Frame & Flange Material	Galvanized Steel / Stainless Steel (SS 304/316L)
Micron Rating	0.5 to 10 Microns (Efficiency up to 99.9%)
Inner/Outer Cage	Galvanized Perforated / Expanded Metal Mesh
Operating Temp	Standard: 80°C
Cleaning Method	Pulse-Jet Compressed Air
Standard Lengths	600mm, 1000mm, 1200mm (Custom sizes available)
