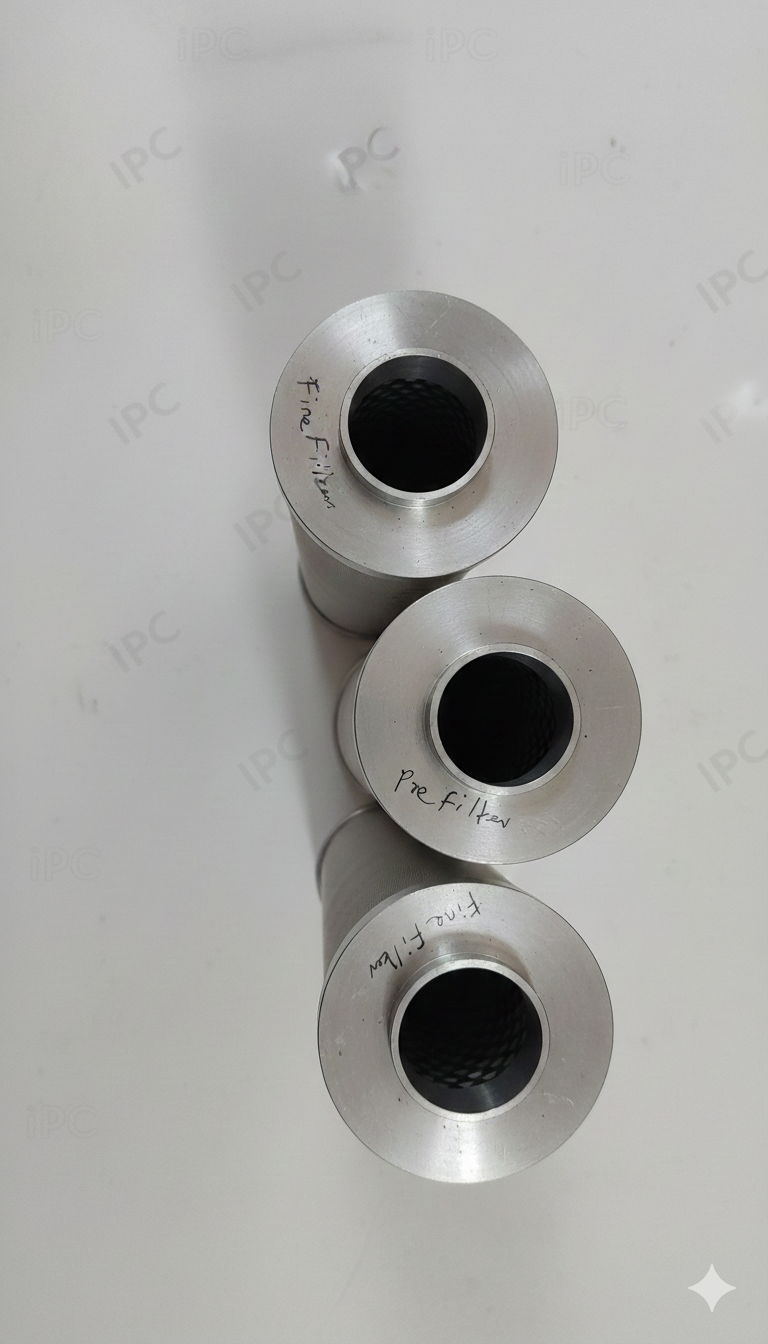

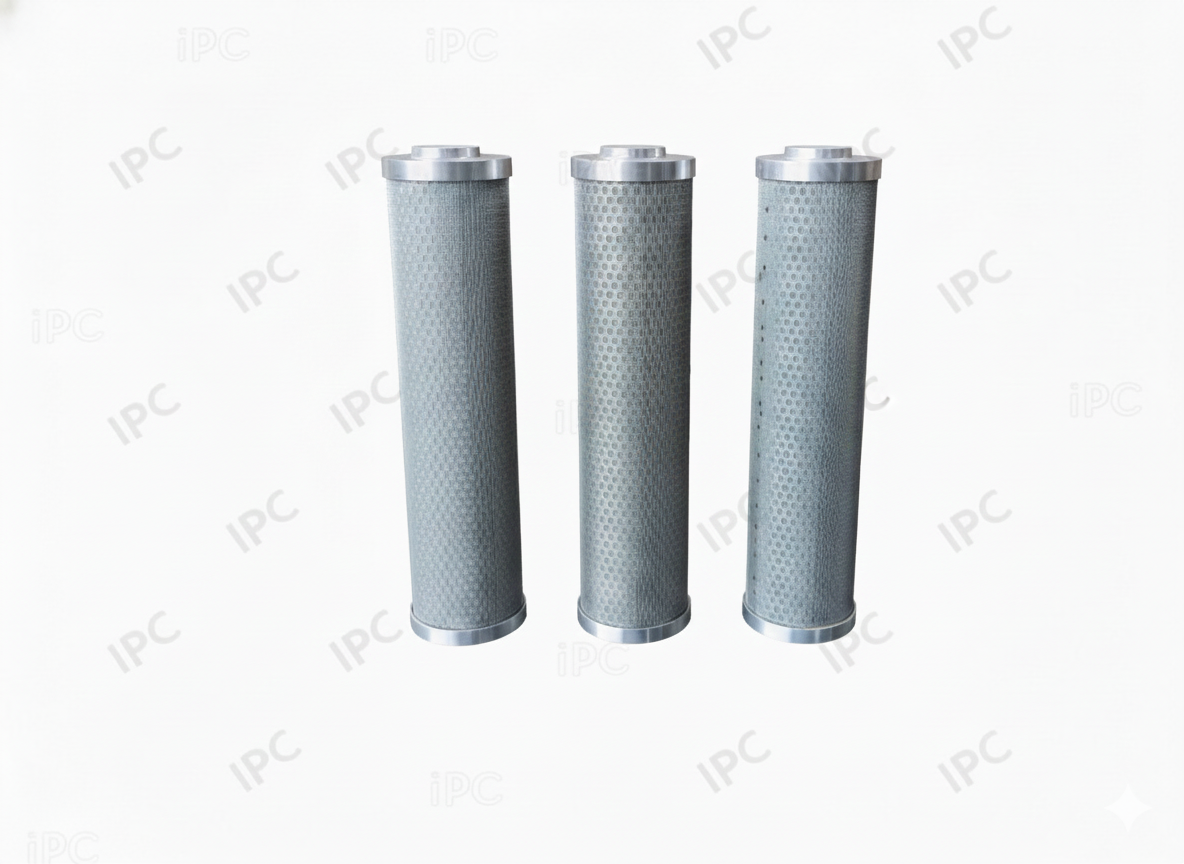

At Industrial Parts and Components, our Compressed Air Dryer Filter Elements (Pre, Fine, and After Filters)are engineered to remove moisture, oil aerosols, and solid particulates from compressed air streams. These high-performance elements are critical for protecting downstream equipment and desiccant beds, ensuring the delivery of ISO-quality dry air and preventing costly system corrosion or product contamination..

Key Features

• Graduated Density Filtration:Features multi-layered borosilicate glass microfiber media that captures oil mist and water droplets through coalescing action, achieving ultra-clean air standards.
• Condensation & Oil Management:: Designed with a specialized outer drainage layer (foam or non-woven sleeve) to efficiently move coalesced liquids to the housing drain without re-entrainment.
• Desiccant Protection:Specifically optimized as "Pre-Filters" to remove oil before it can poison desiccant beads, and "After-Filters" to capture desiccant dust before it enters the production line.

Specification Table

Parameter	Details
Filter Type	Coalescing (Pre/Fine) & Particulate (After) Filters
Media	Borosilicate Glass Microfiber / Activated Carbon / Sintered Bronze
End Cap Material	Corrosion-Resistant Nylon / Aluminum / Stainless Steel
Micron Rating	0.01 to 5 Microns (Oil removal down to 0.003 mg/m³)
Structural Support	Stainless Steel Inner & Outer Support Cylinders
Operating Temp	1.5°C to 65°C (Standard) / Up to 120°C (High-Temp)
Compatibility	Direct replacements for Atlas Copco, Ingersoll Rand, Kaeser, etc.
Flow Direction	Inside-to-Outside (Coalescing) / Outside-to-Inside (Dry Particulate)
