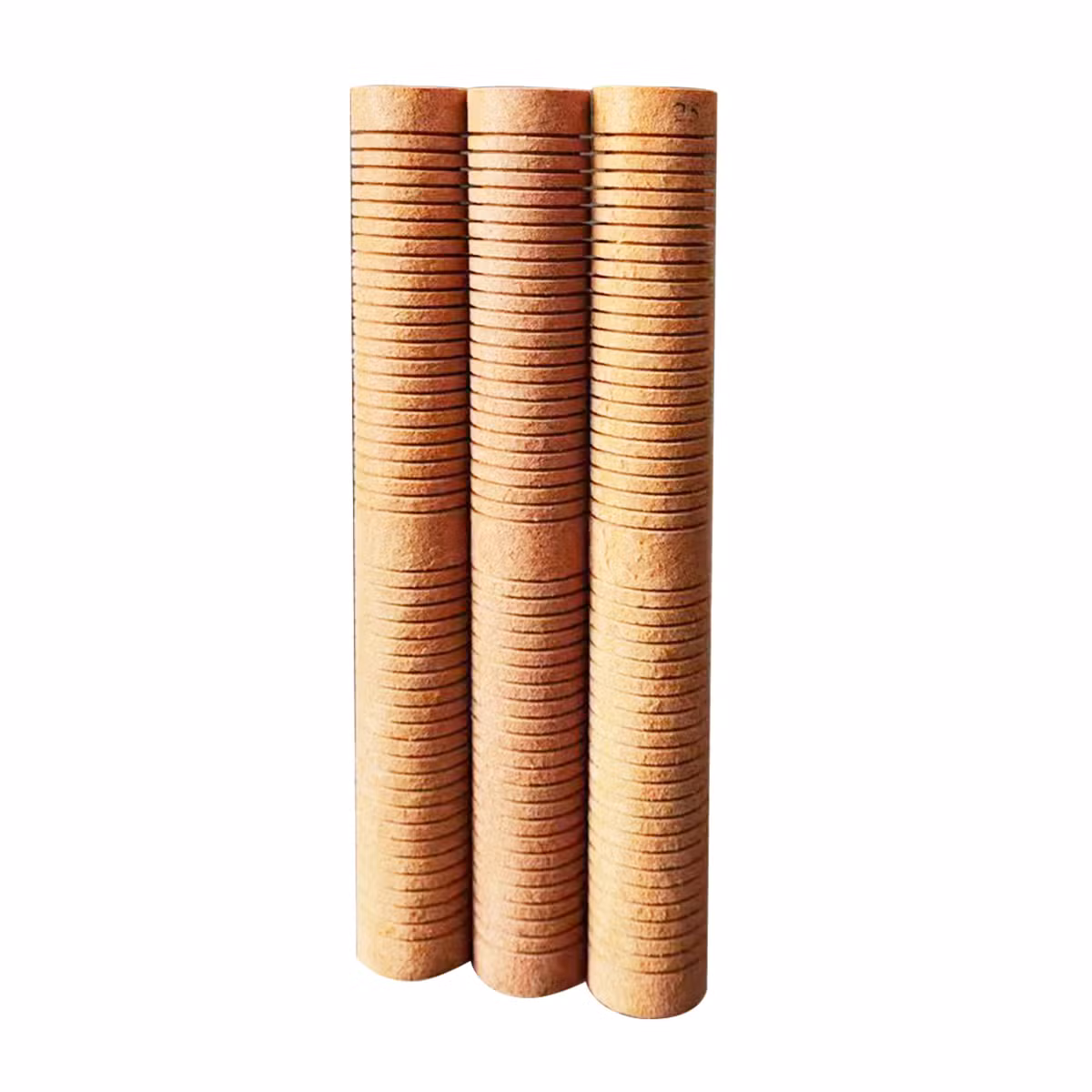

At Industrial Parts and Components,our Resin Bonded Filter Cartridges are engineered for the most demanding industrial applications where high viscosity and high temperatures are the norm. These filters are manufactured using a unique process where extra-long acrylic and phenolic fibers are cross-locked and infused with a specialized resin. This creates a rigid, durable, and one-piece structure that can handle aggressive fluids and high pressure without the media migration or bypass common in softer depth filters.

Key Features

• Rigid Gradient Density:Features a true "outer-to-inner" density gradient that traps larger particles on the surface and smaller particles deep within the rigid matrix, preventing premature surface blinding.
• High Temperature & Pressure Resistance:The thermosetting resin bonding allows these cartridges to operate under high differential pressures (up to 50 PSI) and temperatures that would cause standard PP filters to soften or collapse.
• Grooved Outer Surface:Most of our resin bonded filters are designed with a grooved exterior, which increases the effective surface area by nearly 50%, further enhancing dirt-holding capacity and flow rates.

Specification Table

Parameter	Details
Material	Acrylic/Phenolic Fibers with Thermosetting Resin
Filtration Rating	1, 5, 10, 25, 50, 75, 100, and 150 Microns
Standard Lengths	9.75", 10", 20", 30", 40"
Core Material	Coreless (Self-Supporting) or optional Stainless Steel/PP cores
Max Differential Pressure	3.5 Bar (50 PSI) at ambient temperature
