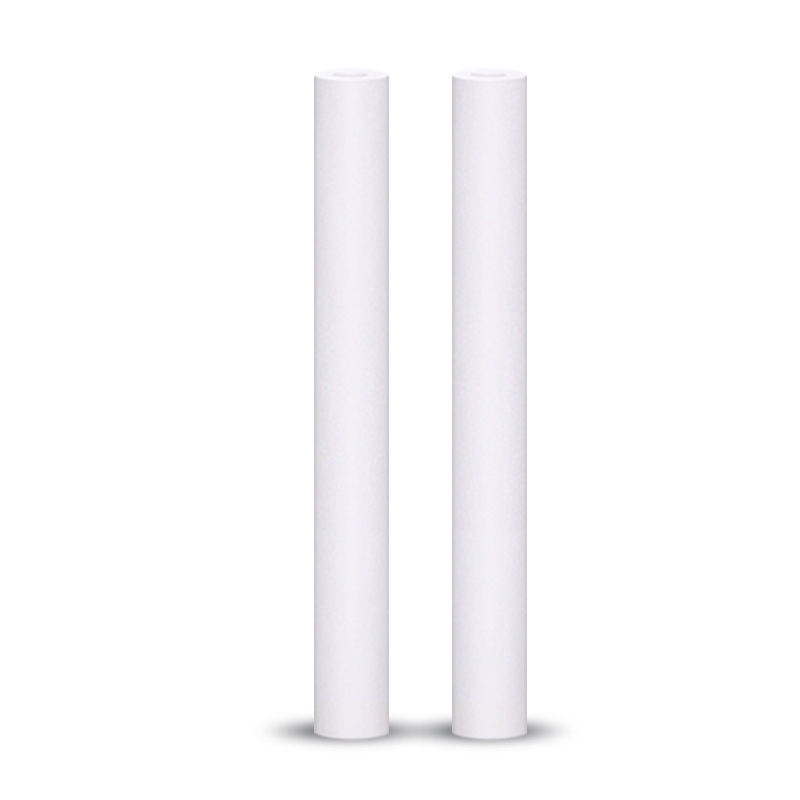

At Industrial Parts and Components, our PP Spun (Melt-Blown) Filter Cartridges are engineered to provide superior sediment removal and water clarity for both industrial and commercial applications. Manufactured using a high-speed, continuous process that thermally bonds pure polypropylene fibers, our cartridges feature a true gradient density structure. This design ensures that larger particles are trapped on the outer surface while finer contaminants are captured deep within the inner layers, significantly extending the filter's service life and preventing premature pressure drops

Key Features

• Graded Pore Structure:Designed with a "coarse-to-fine" density gradient, allowing the cartridge to act as both a pre-filter and a finishing filter in a single element.
• 100% Pure Polypropylene:Constructed from FDA-compliant, surfactant-free, and binder-free PP. This ensures zero chemical leaching, making them safe for potable water and sensitive food and beverage processes.
• High Dirt-Holding Capacity:The multi-layered micro-fibers create a complex 3D matrix that holds more debris than standard string-wound or pleated filters of the same size.

Specification Table

Parameter	Details
Material	100% Food-Grade Polypropylene (Melt-Blown)
Filtration Rating	0.5, 1, 5, 10, 25, 50, and 100 Microns
Standard Lengths	10", 20", 30", 40", 50" (Custom sizes available)
Outer/Inner Diameter	63mm (Standard) / 28mm (Inner)
Max Operating Temp	60°C to 80°C
