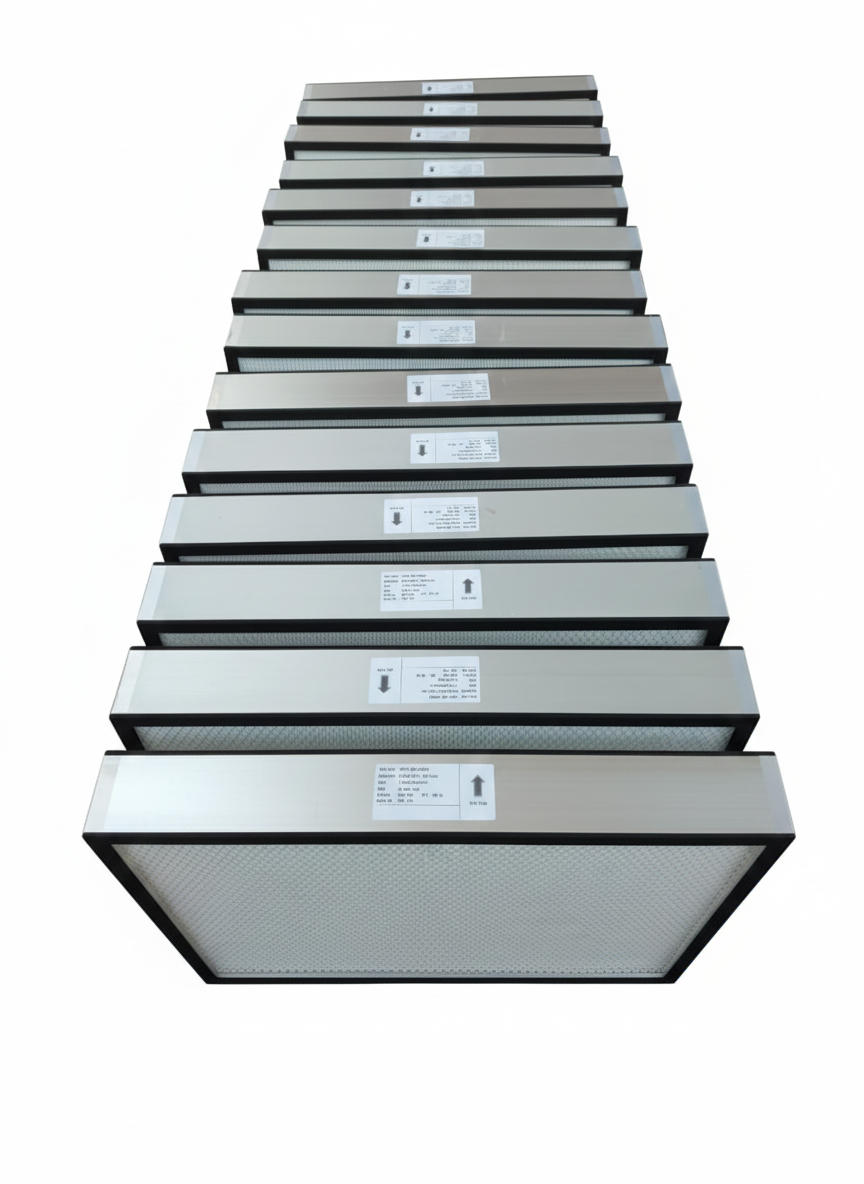

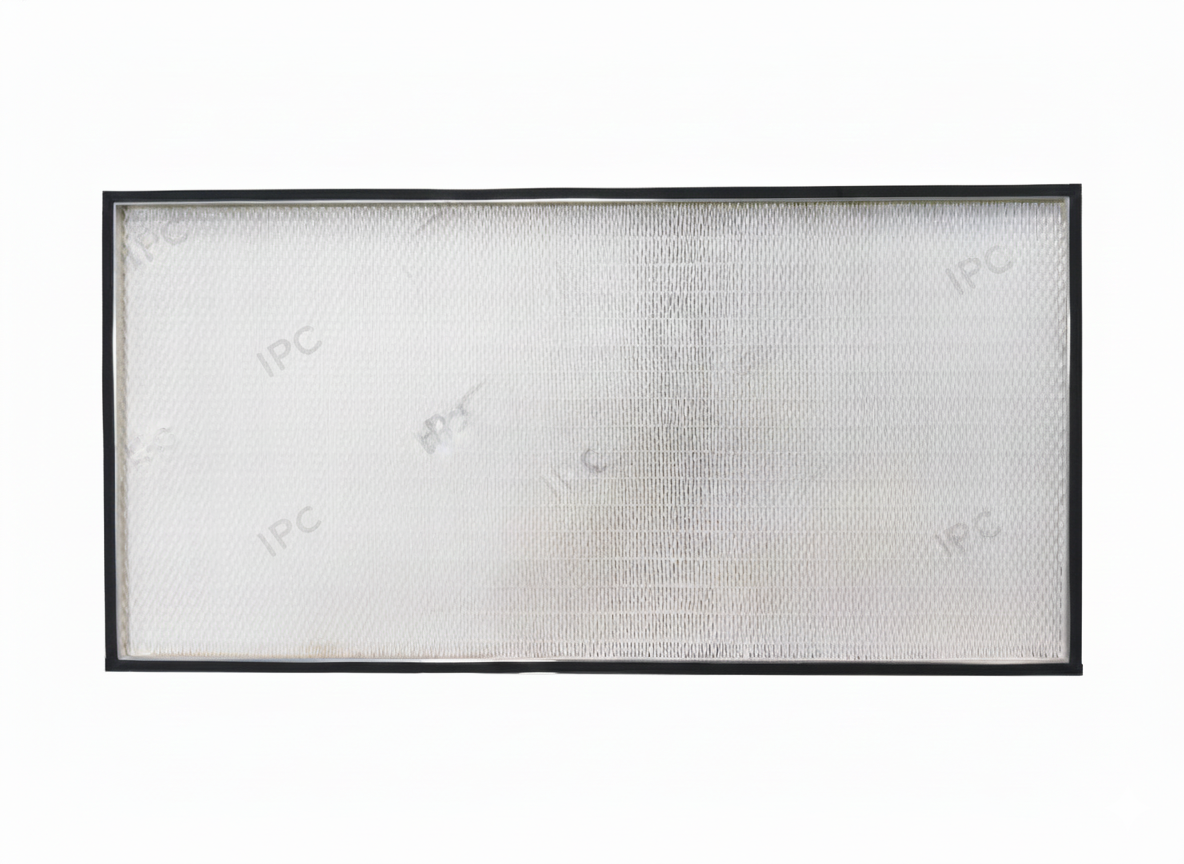

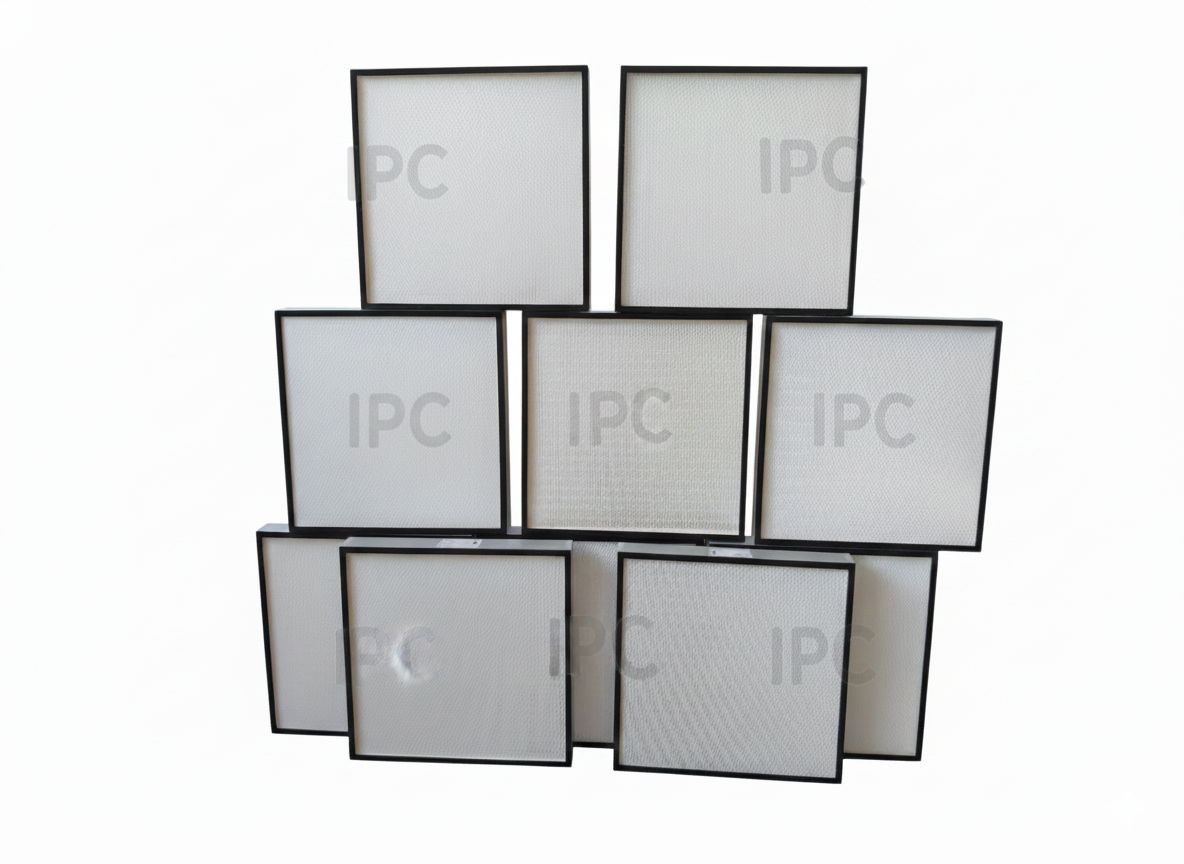

At Industrial Parts and Components, Mini Pleat HEPA Filters represent the pinnacle of high-efficiency air filtration. Designed for environments where air purity is critical, these filters utilize advanced mini-pleat technology to pack a massive filtration surface area into a compact frame. This design ensures the removal of ultra-fine particulate matter, including bacteria and viruses, while maintaining a low resistance to airflow..

Key Features

• Ultra-High Efficiency: Captures particles as small as 0.3 microns with up to 99.997% efficiency
• Mini-Pleat Technology: Uses thermoplastic glue bead separators to ensure uniform pleat spacing and maximum airflow
• Compact & Lightweight: Provides higher air volume capacity compared to traditional deep-pleat filters.
• Leak-Proof Sealing: Equipped with high-quality gaskets or gel seals to eliminate air bypass.

Specification Table

Parameter	Details
Filter Type	Mini Pleat HEPA / ULPA Filter
Media	Ultra-fine Glass Fiber Paper
Frame Material	Anodized Aluminium / SS 304 / Galvanized Steel
Micron Rating	≥ 0.3 Micron (H13/H14)
Efficiency Class	H13 (99.97% - 99.99%) / H14 (99.995% - 99.999%)
Operating Temperature	Up to 80°C
Sealant	Polyurethane (PU) / Silicone Gel
Pressure Drop (Initial)	120–250 Pa (varies by depth and velocity)
Pressure Drop (Final Recommended)	500–600 Pa (replacement strictly recommended)
