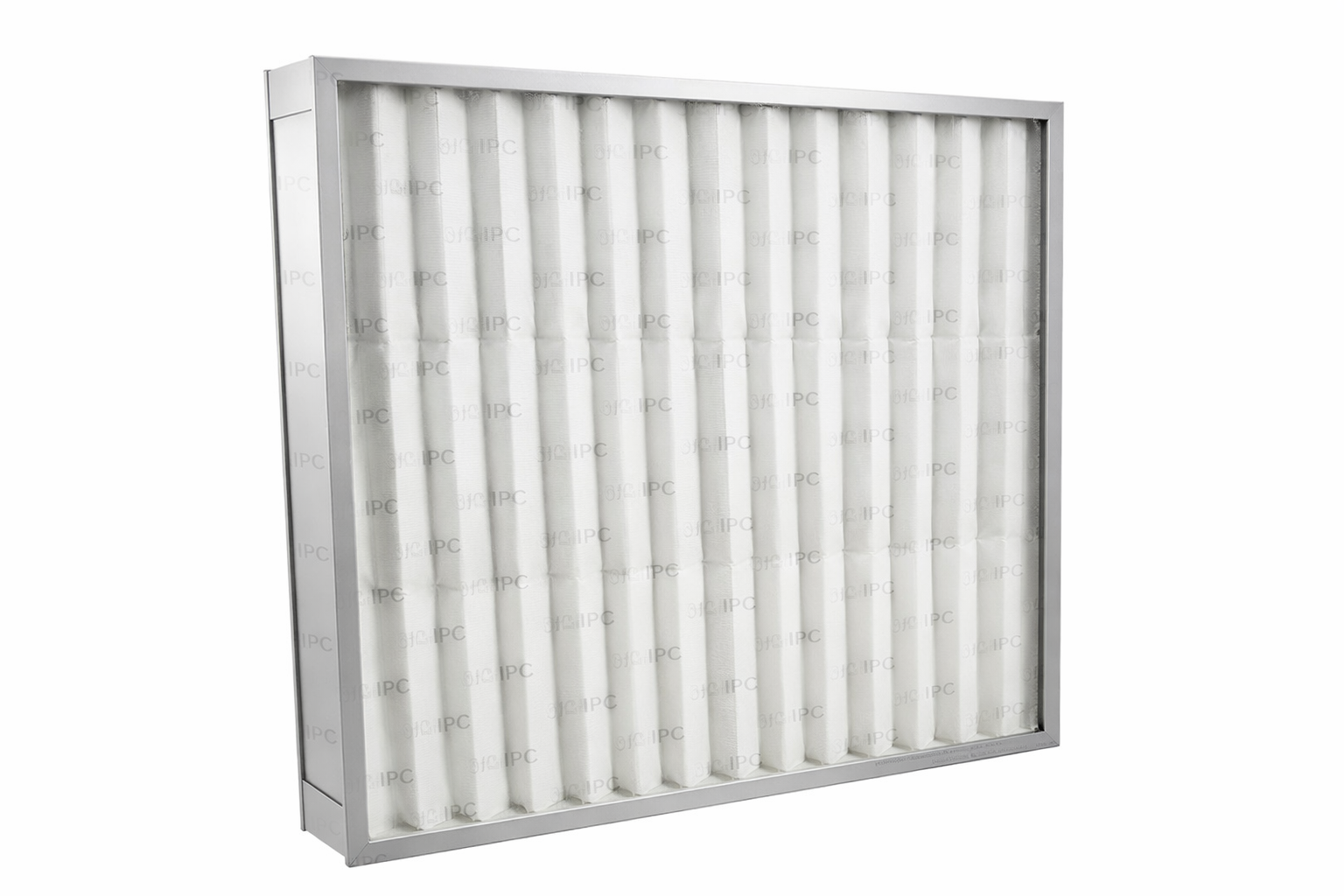

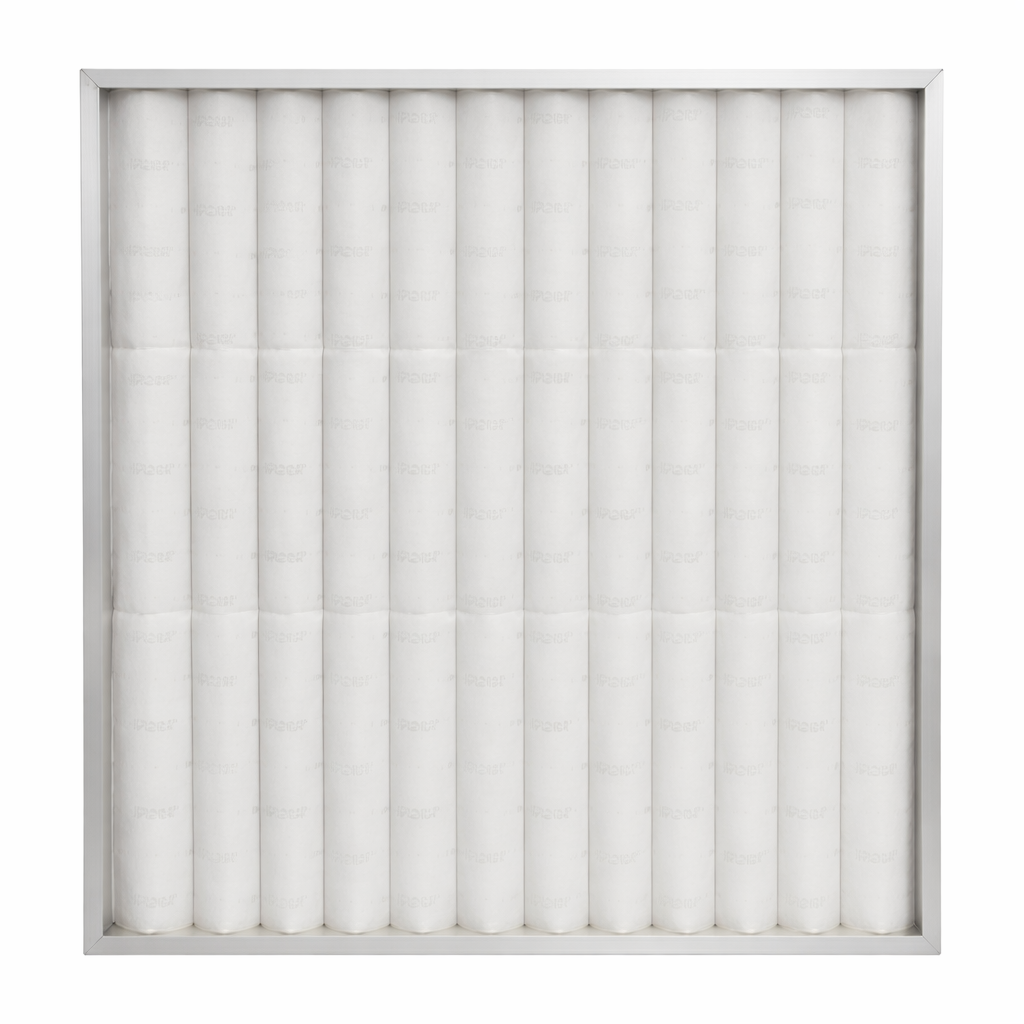

At Industrial Parts and Components, Prefilters are designed for primary air filtration in HVAC and ventilation systems. These filters trap coarse particles (10 microns and above) and prevent clogging of fine filters placed downstream. The filter media is supported in a rigid frame ensuring uniform airflow distribution and low-pressure drop.

Key Features

• High dust-holding capacity
• Low initial pressure drop
• Washable / replaceable media options
• Available in standard and customized sizes

Specification Table

Parameter	Details
Filter Type	Panel / Box Type Prefilter
Media	Non-woven Synthetic / Polyester / HDPE Mesh
Frame Material	GI / Aluminium / MS Powder Coated
Micron Rating	≥ 10 Micron
Efficiency Class	G2, G3, G4 (EN 779 Standard)
Operating Temperature	Up to 80°C
Washability	Yes (Multi-cycle washable)
Pressure Drop (Initial)	25–40 Pa (initial)
Pressure Drop (Final Recommended)	Approximately 200 Pa (replace / service recommended)
